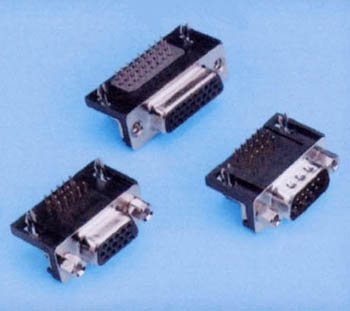

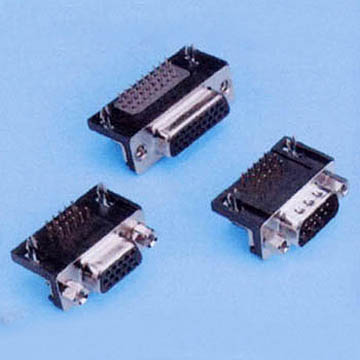

• 3228 D-SUB HIGH DENSITY CONNECTOR P.C.B RIGHT ANGLE TYPE (STAMPED CONTACT) (11/07)

    3228 D-SUB HIGH DENSITY CONNECTOR P.C.B RIGHT ANGLE TYPE (STAMPED CONTACT) (11/07)

    Specifications

    • Shell: Steel, Tin-plated
    • Insulator: PBT + 30% Glass Fiber, UL94V-0
    • Contact: Brass or Phosphor Bronze
    • Current Rating (Max): 3 amp AC/DC
    • Withstanding Voltage: 1000 VAC
    • Insulation Resistance (Min): 1000 mΩ
    • Contact Resistance (Max): 30 mΩ
    • Operating Temperature: -55℃ ~ +105℃

    3228-SA1 3228-PA3
