• 8714 RCA Jack Single Port Right Angle

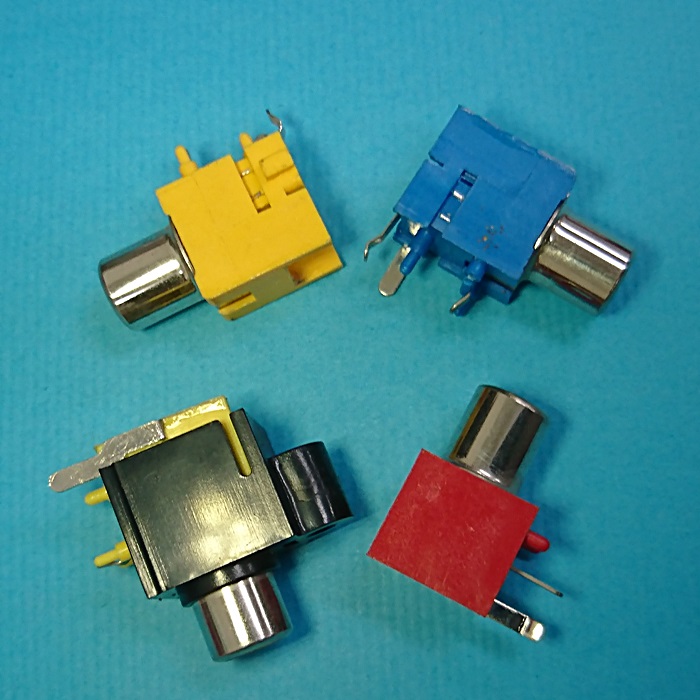

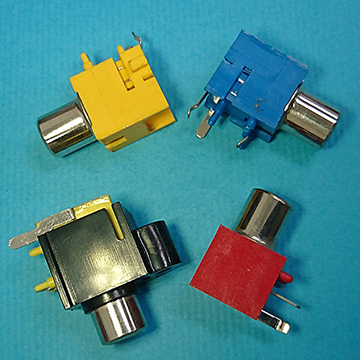

    8714 RCA Jack Single Port Right Angle

    Specifications

    • Contact Resistance: 30m Ohm Max. At AC 100mA Max.1KHz.
    • Insulation Resistance: 100M Ohm Min. At 500V DC.
    • Rated Voltage And Current: DC 12V,2A Max.
    • Dielectric Withstanding Voltage: 500V AC At 60Hz For 1 Minute.
    • Durability(Life Test): 4000 Cycles.
    • Insertion Force: 0.3-3.0 Kg.
    • Extraction Force: 0.3-3.0 Kg.

    8714-001 8714-002 8714-002 8714-101 8714-101 8714-201 8714-B01 8714-L01
